Airbus’ adjustment of its bold hydrogen-electric growth program is a testomony to the size of the duty dealing with the aviation trade to decarbonize.
The information that Airbus is to reduce its ZEROe hydrogen plane growth program was acquired with a mixture of dismay and lack of shock by most within the sector. ZEROe program was launched in 2020 and aimed to place a hydrogen-propulsion plane into service by 2035. As a substitute, there received’t be an Airbus hydrogen-electric plane flying till 2045, and the variety of engineers engaged on hydrogen R&D globally is being slashed.
Talking on the firm’s 2024 monetary outcomes occasion final month, Airbus CEO Guillaume Faury blamed the cutbacks and delay on the shared lack of progress in creating a hydrogen ecosystem – gas manufacturing vegetation and transmission infrastructure. Basically, Airbus now believes hydrogen gas received’t be out there at airports by 2035, making a hydrogen-fuelled plane commercially unviable.

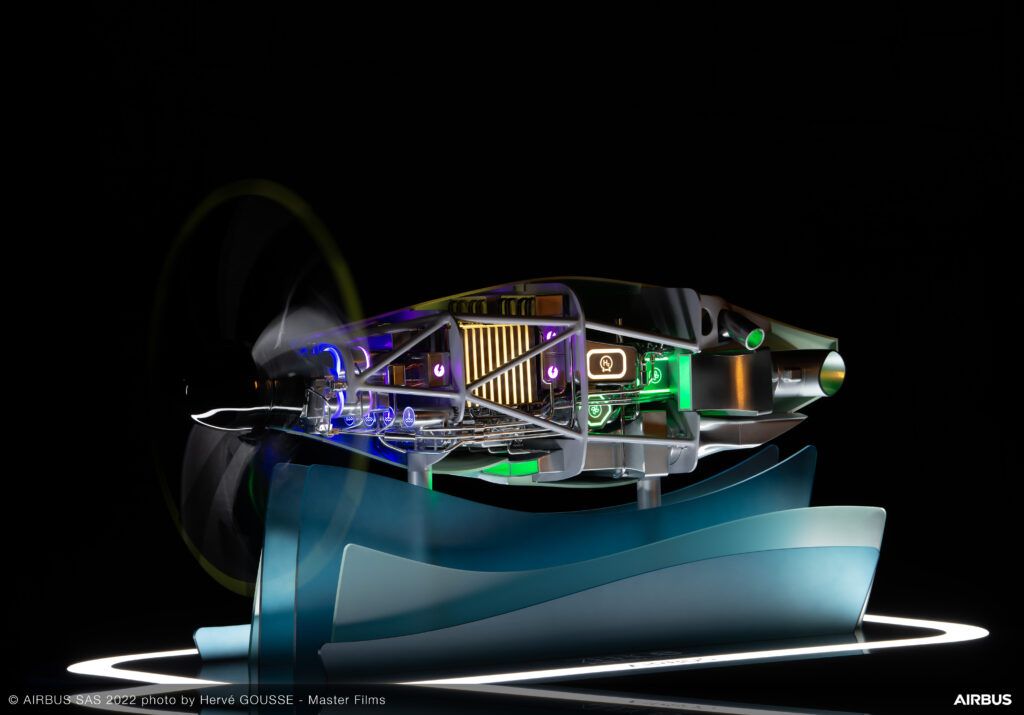

Faury defended the R&D performed to this point, stressing {that a} hydrogen-fuel cell powertrain is technically possible and one of the simplest ways to attain a zero-emissions plane. Certainly, work on the “crucial applied sciences”, akin to gas cells and cryogenic programs will proceed.
However Faury additionally admitted that an eventual hydrogen gas cell-powered plane may look very totally different from the ZEROe ideas publicized over the past 5 years. “The plane should make sense by way of measurement, vary and passenger capability for between 2035 and 2045. We should take a look at the whole equation,” he mentioned.
Small wins
The trade is aware of that hydrogen gas cells can energy plane, arguably most credibly due to flight testing achieved by German startup H2fly of its four-seat HY4 demonstrator in September 2023. The plane flew at altitudes of as much as 7,200ft and its longest flight lasted three hours. A modified Pipistrel mild plane, HY4 is powered by cryogenic liquid hydrogen, which can provide vary and efficiency equal to fossil fuels minus the carbon emissions.
H2fly was acquired by US eVTOL plane developer Joby in 2021. Elements of H2fly’s propulsion system are being examined in Joby’s eVTOL. H2fly additionally continues to develop its H2F-175 gas cell propulsion system, which may output 175kW of energy.
Josef Kallo, now chief know-how officer at H2FLY agrees the biggest barrier to utilizing hydrogen in aviation is its manufacturing and distribution. “The principle problem for hydrogen aviation is to construct the infrastructure to make sure a dependable and cost-competitive provide of hydrogen.
“Creating a complete hydrogen ecosystem would require vital funding, notably in renewable power for inexperienced hydrogen manufacturing and specialised airport refueling infrastructure. This consists of the event of storage and distribution networks to assist hydrogen-powered plane.”
“Whereas it’s troublesome to foretell the precise impression of Airbus’ resolution to reduce its hydrogen R&D efforts, we proceed to imagine in hydrogen as an aviation gas and are totally dedicated to contributing to the event of a hydrogen ecosystem, beginning with smaller electrical plane.”
Sensible readjustment
Crucial a part of any hydrogen-electric plane is the gas cell. UK-based Clever Vitality already provides hydrogen gas cell programs to the automotive, telecoms and development sectors. Based in 2001 and with a workforce right this moment of round 200 folks, the corporate additionally labored with Boeing to construct and fly the world’s first gas cell-powered plane in 2008. Jonathon Douglas-Smith, head of aerospace gross sales at Clever Vitality believes most individuals within the trade have been anticipating Airbus to reduce its hydrogen ambitions: “Airbus have been trailblazers with ZEROe. However it’s too giant of an endeavor for them to do all of it themselves,” he says.
“We don’t suppose it damages the path to marketplace for hydrogen plane, it’s a realignment that may permit suppliers to assist Airbus make it occur.”
Clever Vitality has developed an aviation gas cell as a part of the UK Authorities-funded £54 million (US$68 million) H2GEAR challenge. The 300kW succesful gas cell system was launched to the market in July 2024 on the Farnborough Airshow. The IE-FLIGHT 300 (F300) is for Half 23 plane with as much as 19 seats and eVTOLs. The primary OEM prospects are anticipated to be introduced quickly, with first deliveries deliberate for 2027.
In the course of the subsequent two and half years, engineers at Clever Vitality will develop the stability of plant for the F300. This consists of the ancillary elements of the system akin to the warmth exchanger, air compressor and hydrogen recirculation module.
Douglas-Smith says, “The market needs a extra full stability of plant with the gas cell system as a result of it removes the client’s want to know the complexities of easy methods to run gas cells optimally. Now we have 24 years of expertise constructing gas cell programs, so it is smart for us to do it.”
Clever Vitality can be creating a bigger F500 gas cell system based mostly on the identical underlying light-weight gas cell stack know-how for plane bigger than 19 seats. “Scaling up is a part of our roadmap,” says Douglas-Smith. “Bigger plane want the next particular energy, and extra time is required to develop the know-how for these energy densities. Now we have R&D applications which can be wanting on the know-how.
“However we see bigger plane as a longer-term market,” he says. “The marketplace for smaller plane will probably be so much sooner, in the direction of the top of this decade, quite than the 2040-45 timeframe for gas cell powered plane higher than 100 seats.”
Clever Vitality has invested closely and made good progress with its aviation gas cell, underlining its perception out there. Different firms, akin to Powercell are additionally betting on gas cells for aviation functions. Having equipped the gas cells for its prototypes, the Swedish firm is supplying the stacks for ZeroAvia’s first 600kW powertrain (ZA600), which can be supposed to be used in Half 23 plane.
The 2 firms are additionally partnering on the R&D for the extra highly effective ZA2000 powertrain, which is aimed toward turboprop plane of as much as 80 seats and will probably be based mostly on Powercell’s heavy-duty gas cell stack design. Powercell can be supplying its 300kW HDS300 (heavy responsibility system) gas cell stack and engineering assist for an 18-month aviation challenge in Japan.
In the meantime, German automotive provider ElringKlinger’s aviation gas cell know-how has been licensed by Airbus and is being developed as a part of a three way partnership firm referred to as Aerostack. Its proton trade membrane (PEM) gas cell is predicated on ElringKlinger’s NM12 stack, which gives a most output of 205kW. The gas cells have been utilized in a profitable floor take a look at of a 1.2MW powertrain final January in Ottobrunn, Germany.
“Airbus has acknowledged that important hydrogen gas cell part know-how goes to take longer than they anticipated to achieve the efficiency ranges wanted for the 100-seater plane,” says Douglas-Smith. “I might confidently say that Clever Vitality is a world chief on this subject. However there’s a lengthy method to go – the rules and conformity to airworthiness requirements are nonetheless being written by EASA and the FAA – though roadmaps have been printed by each regulators final yr.”
Warmth dissipation
The H2GEAR challenge developed Clever Vitality’s stack know-how to TRL 5. One of many largest challenges the corporate has encountered with creating gas cells to be used in aviation is the high-altitude atmosphere.
“We examined the stack module in consultant situations of working altitudes in barometric chambers. The stack was designed to particularly face up to the stress differentials that may be anticipated at altitude. The seals have been a key a part of the design,” says Douglas-Smith.
“The air is much less dense at altitude, making cooling tougher. We see this already with our merchandise for our drone prospects, who use decrease powered cells that includes air-cooling. Our patented evaporative cooling system is extra thermally efficient and one of the simplest ways to get the warmth out of the stack.”
Gas cells are 50% environment friendly over life. A gas cell delivering 100kW of energy produces 100kW of warmth which must be dissipated. The Flight F300’s evaporative cooling system injects deionized water into the very popular stack, which evaporates. Warmth is transferred by means of vaporization, which is a more practical method of eradicating warmth from the cells than liquid cooling.
Crucially for aviation functions, the elevated effectiveness of evaporative cooling permits the thermal administration system to be smaller and lighter. Injecting water immediately additionally humidifies it, which optimizes the efficiency and lifelong of the stack.
Now-defunct hydrogen aviation startup Common Hydrogen used USA firm PlugPower’s automotive gas cell for its testing program, integrating a system into the nacelle of a Sprint 8 plane. Specialists have been fast to see the cooling challenges that had been encountered by the Common Hydrogen group. “They wanted actually giant air scoops and radiators, including weight and drag. It turned apparent it wasn’t a viable answer to go to market with,” says Douglas-Smith.
“That was one of many motivations for us to develop the F300, which past the evaporatively cooled know-how, has a excessive temperature that may additional shrink the thermal administration and nacelle packaging. That’s one of many core growth actions now.”
Energy distribution programs
GKN Aerospace heads up the H2GEAR program, which began in 2020 and concludes in September this yr. H2GEAR goals to develop a liquid hydrogen propulsion system for sub-regional plane that may be scaled as much as bigger plane. It’s the largest single program ever awarded by UK funding physique the Aerospace Know-how Institute (ATI). In addition to gas cell firm Clever Vitality, companions embody turbocompressor firm Aeristech and several other analysis universities.
H2GEAR is reaching its demonstration and testing section. ATI has awarded GKN different hydrogen analysis applications, together with the £40 million, four-year HyFIVE program, which focuses on liquid hydrogen storage and gas conditioning programs, and the £44 million H2FlyGHT, a follow-on to H2GEAR. H2FlyGHT goals to show a 2MW hydrogen-electric propulsion system in flight by the top of the last decade.
Mike Hales, chief engineer of hydrogen propulsion at GKN Aerospace says, “At its coronary heart we’re constructing an power conversion system – liquid hydrogen is transformed into DC energy through a gas cell, then distributed across the plane and gives the propulsion energy.
“It’s transformed to AC energy in an inverter positioned subsequent to {the electrical} machine, which converts that into torque to run the propulsor. The powertrain can be related for those who have been utilizing GH2 as a gas supply, however the H2GEAR structure with an LH2 gas supply to supply some preferential technical options.”
“It’s transformed to AC energy in an inverter positioned subsequent to {the electrical} machine, which converts that into torque to run the propulsor. The powertrain can be the identical for those who have been utilizing GH2.”
Hales believes the 50% gas cell effectivity achievable right this moment could be improved upon by means of advances in chemistry growth and supplies know-how. Hyperconducting supplies are getting used within the DC energy distribution system and {the electrical} machine’s stator. These behave equally to superconductors however use metals akin to high-purity aluminum, giving low resistivity at cryogenic temperatures with out the abrupt failure dangers of superconductors. “Hyperconductors are additionally an obtainable near-term know-how and could be made reliably right this moment within the kind we require,” says Hales.
The lowered energy losses within the distribution system imply extra present could be transferred. Chunky copper cables could be changed with smaller conductors and a decrease voltage to scale back the burden by as much as 4 instances. It may well use a +/- 270V customary, already in use right this moment may also be used and minimizes the partial discharge results.
The lowered energy losses within the distribution system imply extra present could be transferred. Chunky copper cables could be changed with smaller conductors and a decrease voltage to scale back the burden by as much as 4 instances. The know-how permits the usage of a +/- 270V customary, already in use right this moment.
“Cryogenic cooling permits us to enhance the effectivity of energy distribution and propulsion. With hyperconducting supplies, we see round a ten% enchancment in electrical switch effectivity, which immediately interprets right into a smaller and lighter system for a given energy,” says Hales. “By cooling {the electrical} machine’s stator windings to cryogenic temperatures, we dramatically scale back AC and DC losses. This enhances effectivity and helps us hold the system compact.”
H2gear testing
Researchers on H2GEAR are integrating programs and have been testing gas cells because the finish of 2023. “A giant milestone final yr was the meeting of our first demonstrator motor. It’s the primary machine of its kind that accommodates hyperconducting high-purity aluminum. That motor has been on take a look at on the College of Manchester. We’re growing its shaft energy to confirm its effectivity.”
GKN researchers have designed a number of ideas, together with a notional research plane that may be used as a reference from which to check the powertrain in simulation.
“Our analysis signifies that hydrogen-electric propulsion presents a pathway to zero-emission plane. By leveraging cryogenic and hyperconducting applied sciences, we are able to enhance vary functionality.
“With projected enhancements in gas cells and different elements, we imagine it’s possible to scale as much as single aisle sized plane. That might make a significant impression on the aviation trade’s emissions footprint.”
Regardless of additionally being a part of the H2GEAR program, GKN won’t be utilizing Clever Vitality’s F300 gas cell, as a result of its growth roadmap targets plane of greater than 100 seats, like Airbus’ plan.
“Gas cell know-how has solely actually been in growth for aerospace for the final 5 years,” says Douglas-Smith. “There may be uncertainty about its limits. It is likely to be capped at 100 or 120-seat plane. Proper now, all we all know for certain is it really works for smaller plane and eVTOLs.”
Equally to battery-electric plane, the trail to marketplace for hydrogen-electric will construct from smaller, basic aviation plane to regional plane after which, maybe on to giant airliners. Even then, the viability is dependent upon a large cross-sector effort to determine sustainable methods of manufacturing and distributing hydrogen gas and new swathes of regulation. As Airbus has labored out, there isn’t a shortcut to hydrogen aviation.
On-aircraft challenges
Thermal points aren’t the one concern when integrating a hydrogen-electric gas cell powertrain into an plane. Dr Craig Lawson is a reader in airframe programs at Cranfield College. Final month floor was damaged on the College’s £69 million (US$87 million) Hydrogen Integration Incubator (CH2i) challenge, which will probably be one of many largest hydrogen R&D amenities in Europe. “The introduction of hydrogen is so radical it can probably be performed incrementally and at first sub-optimally. One of many huge points is storage quantity,” he says. “With a tube and wing design, you possibly can’t put hydrogen gas within the wings as a result of they’re too skinny. We want cylindrical, ideally spherical tanks. You’ll be able to put them within the fuselage, however then you’re compromising on passenger house and payload.”
In line with Lawson research taking a look at modifying present plane with hydrogen gas programs have concluded the end result will probably be plane with inferior payload and vary capabilities in comparison with present fashions. “We’re going to have to simply accept a success on payload and vary to have a zero-carbon plane,” he says.
As well as, a change in power service means large modifications to certification and rules. The security case for hydrogen as an aviation gas is but to be totally explored.
“We perceive the failure modes of kerosene, so it’s OK to have it comparatively close to an plane’s occupants. But it surely’s not clear that the failure mode of a hydrogen tank goes to be something apart from catastrophic,” says Lawson.
“Which means to some folks, if the hydrogen is inside the identical fuselage because the occupants, the plane is uncertifiable as a result of any failure goes to be catastrophic.”
Hydrogen could possibly be saved on tanks mounted on wings, however once more this can be a sub-optimal answer. Alternatively in a blended wing physique (BWB) plane, which options lots of storage quantity, the hydrogen tanks could possibly be positioned outboard of the passengers. “BWB might be the very best answer for a hydrogen airliner,” says Lawson.
BWB is an immature design, though research have proven it to be environment friendly for large-capacity plane, it doesn’t matter what the power service, says Lawson. Nevertheless, curiosity is rising in BWB, due to the push in the direction of hydrogen as a gas. California, USA-based startup JetZero plans to begin flight testing a full-scale BWB plane in 2027. “There’s analysis coming in Europe and our Exaelia challenge has simply began, taking a look at lengthy vary, A350 replacements – inexperienced airliners,” says Lawson.
